TF24 socket to DIP48
TF24 to DIP48 Pogo Pin Test Socket Flash Chip Adapter TF Clamshell Pin Test Socket TF card socket for TF card data recovery contact.
parameter
| socket body | PEI/PES |
| Contact pin | Beryllium Copper alloy |
| Contact pin plating | Gold over Nickel |
| Contact resistance | 25Ω~50Ω typical |
| Temperature | -50~125℃ |
| Service life | 60000 times |
| TF card size | 15*11mm |

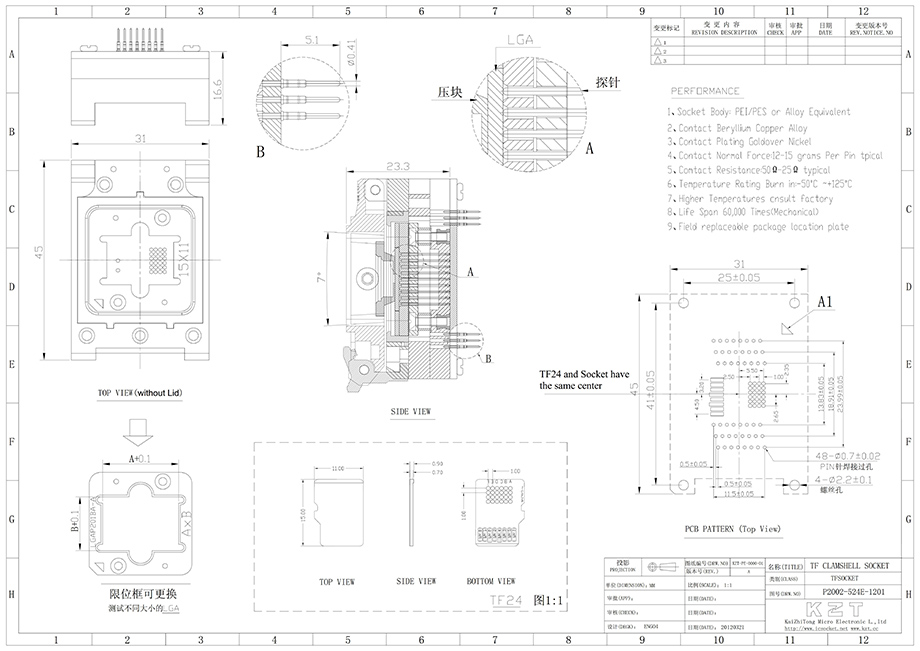

| Other detailed please refer the drawing | |
PRODUCT FEATURES
-
-
Small spacing
minimum pitch of 0.2mm
-
-
test accuracy
The test is accurate and the error rate is 0.001 %
-
-
High temperature
high temperature: 175 ℃, low temperature: -55 ℃
-
-
long service life
Life span more than 300,000 times, 2-3 times that of other similar brands

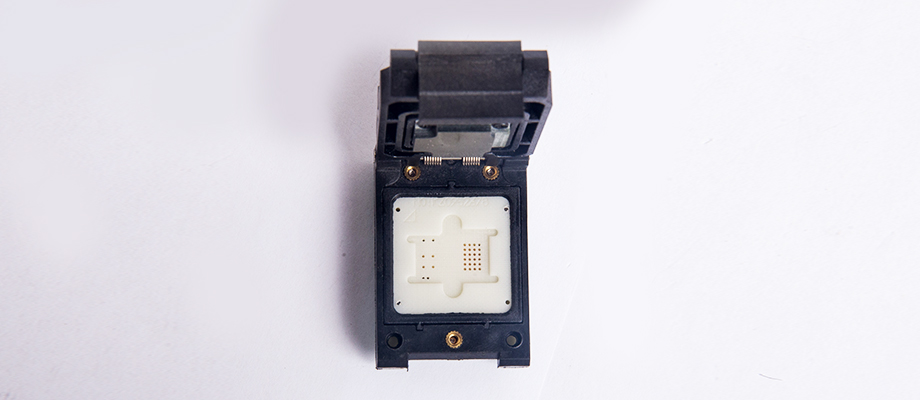

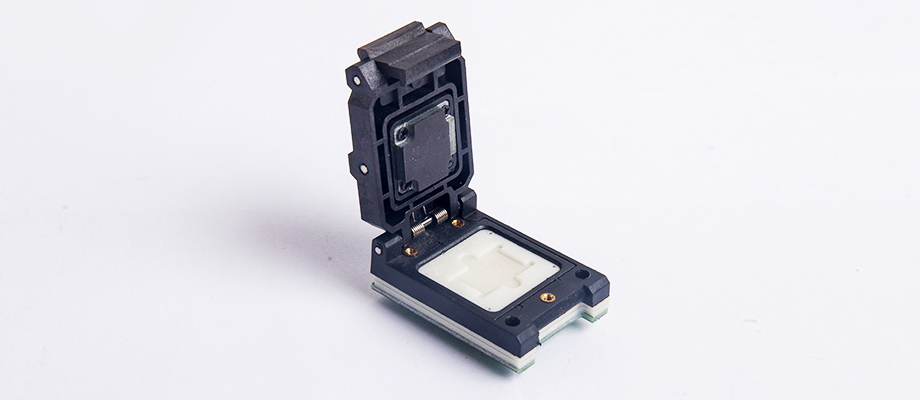

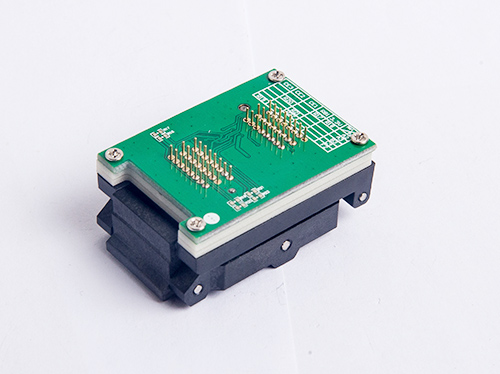

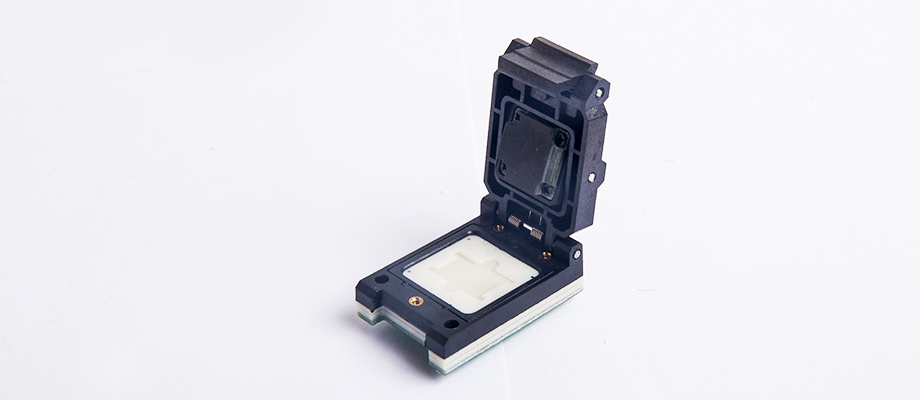

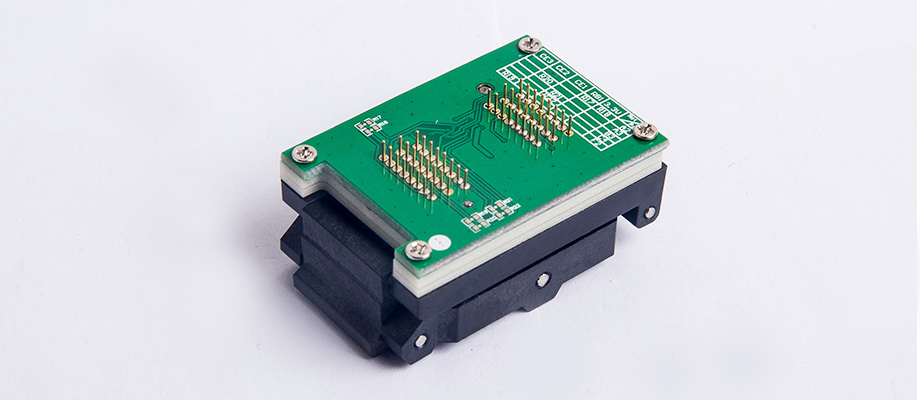

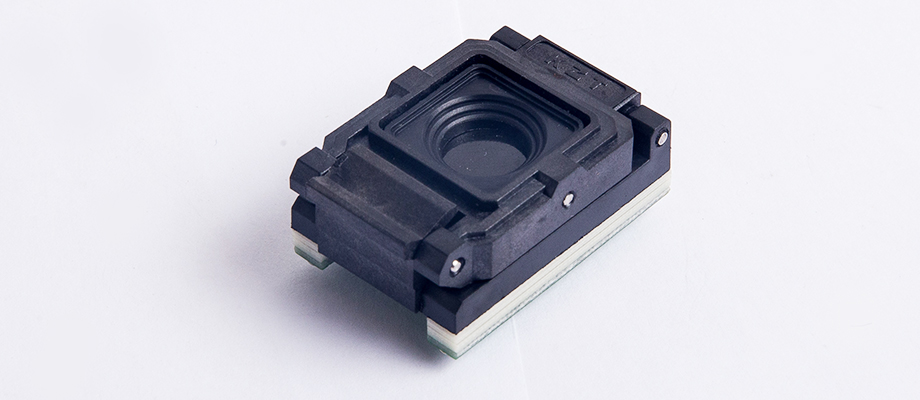

Product image
