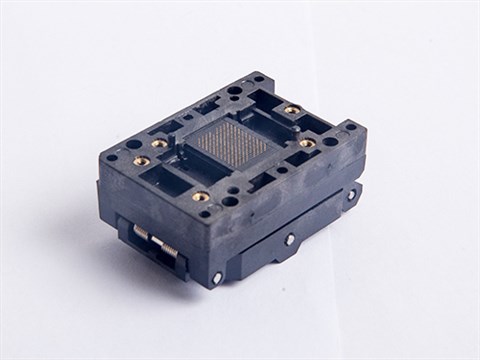

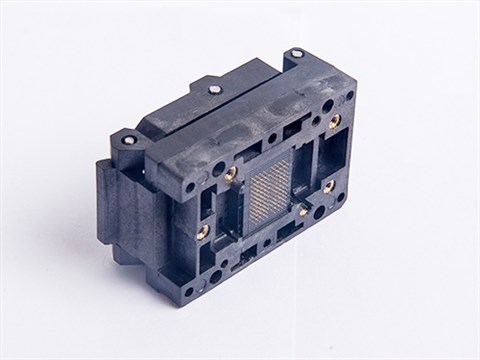

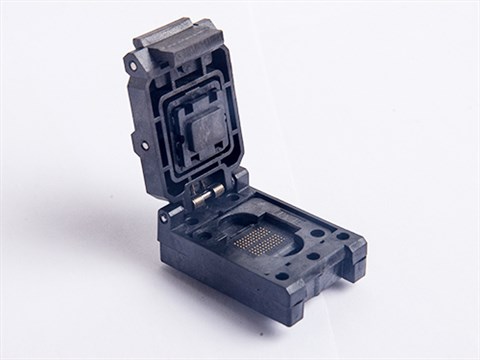

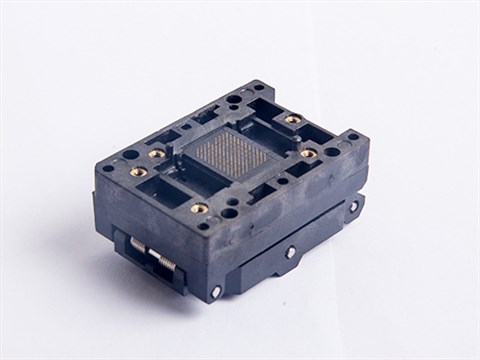

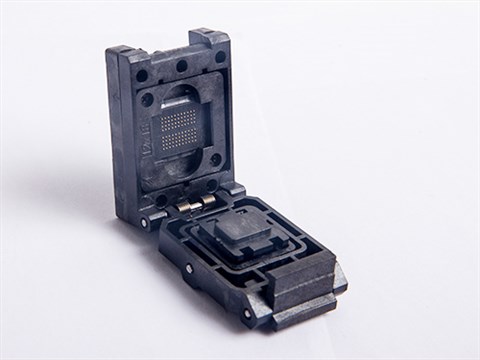

BGA152/132 clamshell burn in socket

BGA152/132 clamshell burn in socketBGA152/132 clamshell burn in socketBGA152/132 clamshell burn in socketBGA152/132 clamshell burn in socketBGA152/132 clamshell burn in socketBGA152/132 clamshell burn in socket

Product Introduction

BGA152/132 clamshell burn in test socket for SSD NAND flash test.

Product details

parameter

Chip package BGA
Pin count 88pin
Pin pitch 1.0mm
Insulation Resistance 1000mΩ Min.At DC500V
Dielectric Witdstanding Voltage For 1Min at AC700V
Contact Resistance 30mΩ Max.at 10mA and 20mV Max.(initial)
Current Rating 1A Max.
Operation temperature -55℃~+175℃
Life Span 25,000 Times (Mechanical)

PRODUCT FEATURES

Small spacing
minimum pitch of 0.2mm
test accuracy
The test is accurate and the error rate is 0.001 %
High temperature
high temperature: 175℃, low temperature: -55℃
long service life
Life span more than 300,000 times, 2-3 times that of other similar brands
