Home SOT socket

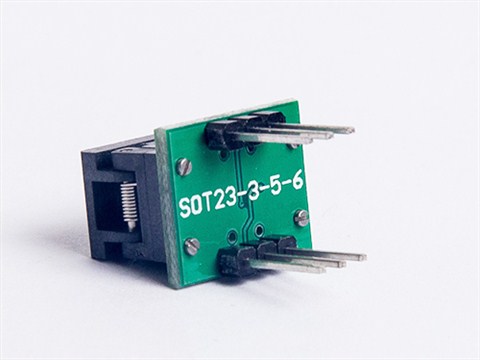

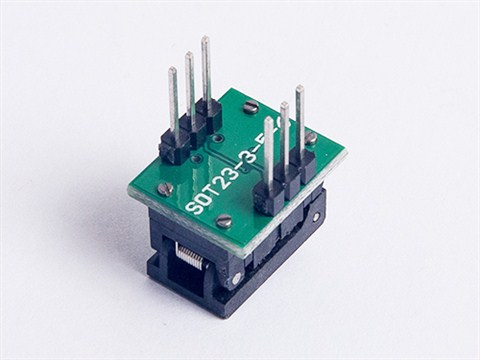

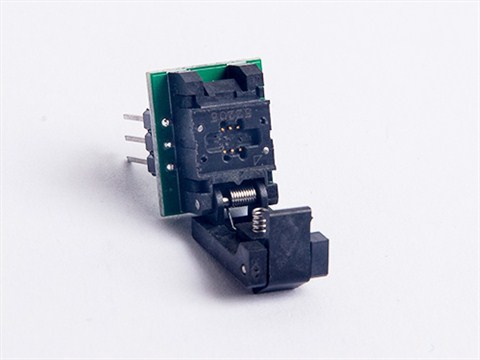

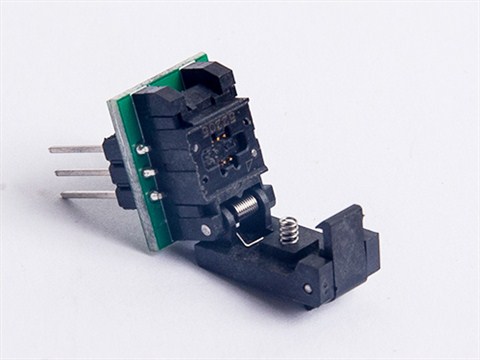

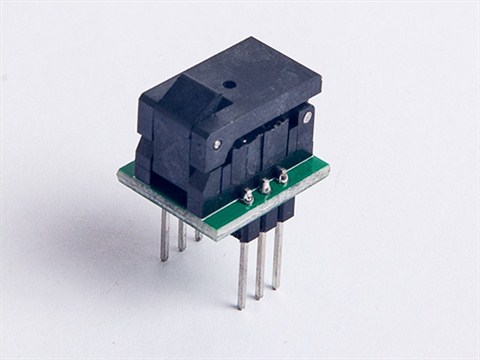

SOT23 programming socket

SOT23 programming socketSOT23 programming socketSOT23 programming socketSOT23 programming socketSOT23 programming socket

Product Introduction

SOT23-5-0.95 Clamshell Pogo Pin Probe Test Socket SOT23-5-0.95-CP01PNL Programming Socket Pitch 0.95 Chip Size 1.6*3mm
1.Product Usage : programming socket , test socket , burn in and test for chip SOT23-5;
2. Applicable Package : SOT23-5 , pin pitch 0.95mm

Product details

parameter

Type SOT23-5-0.95
Pin pitch 0.95 mm
Pin Count 5
Applicable IC Body Dimension 1.6*3 mm

PRODUCT FEATURES

Small spacing
minimum pitch of 0.2mm
test accuracy
The test is accurate and the error rate is 0.001 %
High temperature
high temperature: 175℃, low temperature: -55℃
long service life
Life span more than 300,000 times, 2-3 times that of other similar brands
