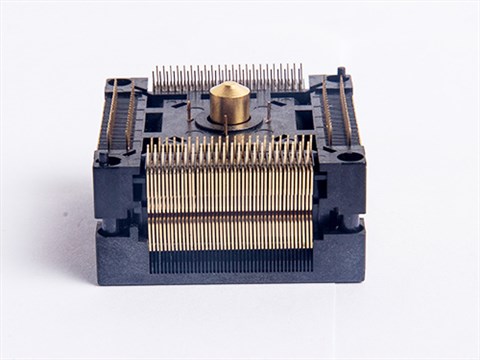

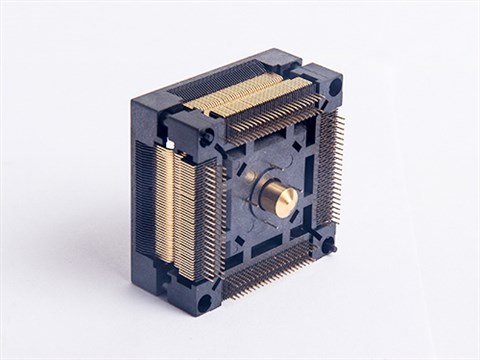

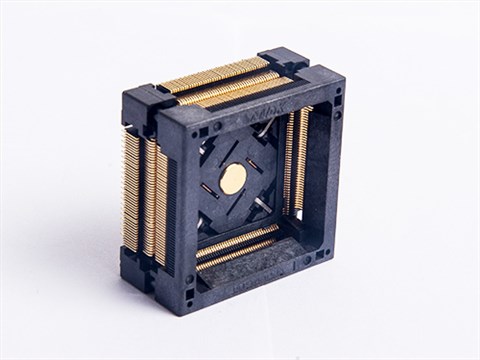

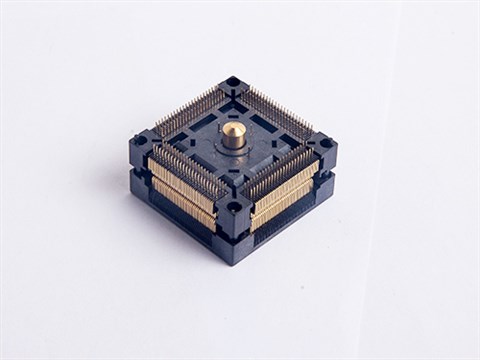

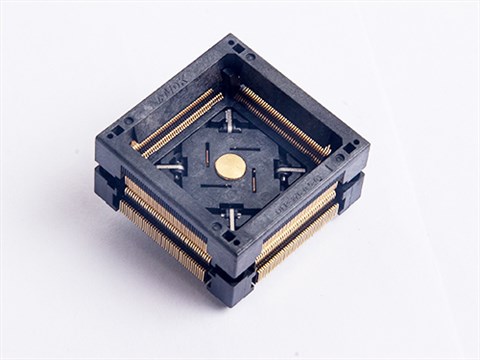

QFP176 burn in socket

QFP176 burn in socketQFP176 burn in socketQFP176 burn in socketQFP176 burn in socketQFP176 burn in socket

Product Introduction

QFP176 TQFP176 LQFP176 OTQ-176-0.5-06 Burn in Socket Pitch 0.5mm Open Top Programming Adapter Test Socket Adapter.
1. Product Usage : programmer socket , test socket , burn in and test for hipQFP176/TQFP176/LQFP176
2. Applicable Package : QFP64 , TQFP64 , LQFP64 ,pin pitch 0.5mm

Product details

parameter

Type QFP176-0.5-06
Pinpitch 0.5 mm
Pin Count 176
Applicable IC Body Dimension 24*24 mm ( including pin dimension : 26*26 mm)

PRODUCT FEATURES

Small spacing
minimum pitch of 0.2mm
test accuracy
The test is accurate and the error rate is 0.001 %
High temperature
high temperature: 175℃, low temperature: -55℃
long service life
Life span more than 300,000 times, 2-3 times that of other similar brands
