TF24 socket to DIP48

TF24 socket to DIP48TF24 socket to DIP48TF24 socket to DIP48TF24 socket to DIP48TF24 socket to DIP48TF24 socket to DIP48

Product Introduction

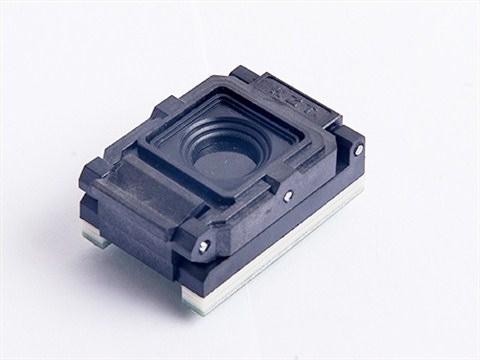

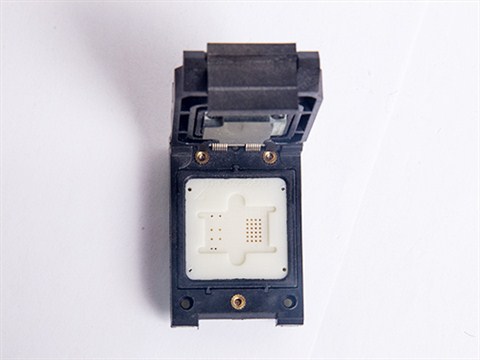

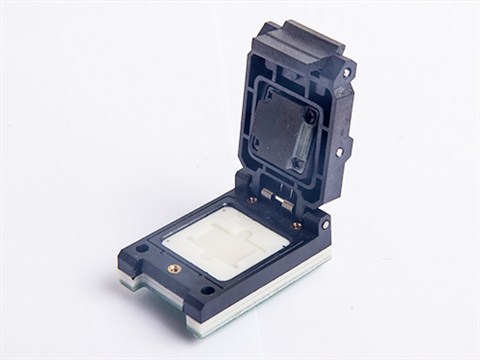

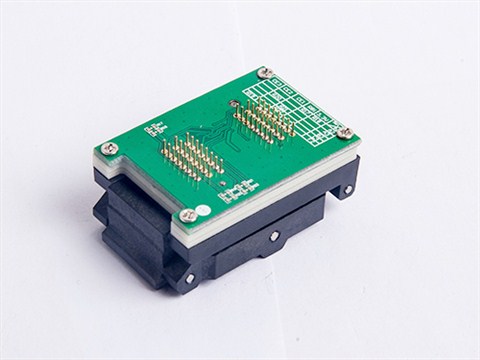

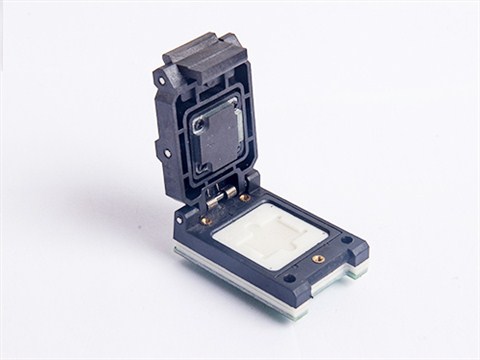

TF24 to DIP48 Pogo Pin Test Socket Flash Chip Adapter TF Clamshell Pin Test Socket TF card socket for TF card data recovery contact.

Product details

parameter

socket body PEI/PES
Contact pin Beryllium Copper alloy
Contact pin plating Gold over Nickel
Contact resistance 25Ω~50Ω typical
Temperature -50~125℃
Service life 60000 times

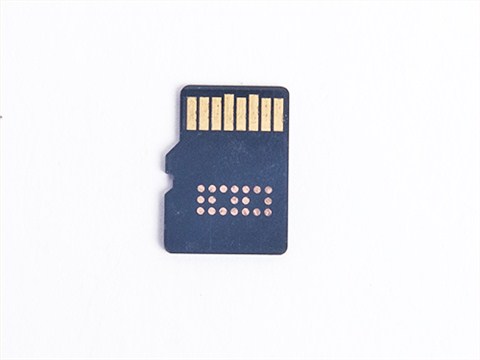

TF card size 15*11mm
Other detailed please refer the drawing

PRODUCT FEATURES

Small spacing
minimum pitch of 0.2mm
test accuracy
The test is accurate and the error rate is 0.001 %
High temperature
high temperature: 175℃, low temperature: -55℃
long service life
Life span more than 300,000 times, 2-3 times that of other similar brands
