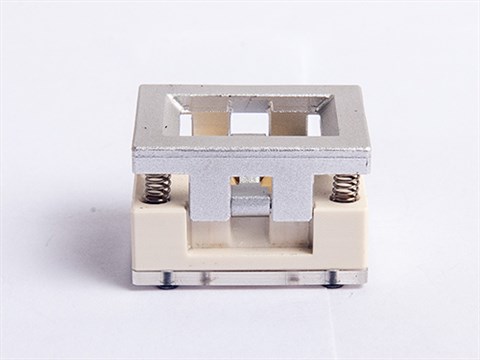

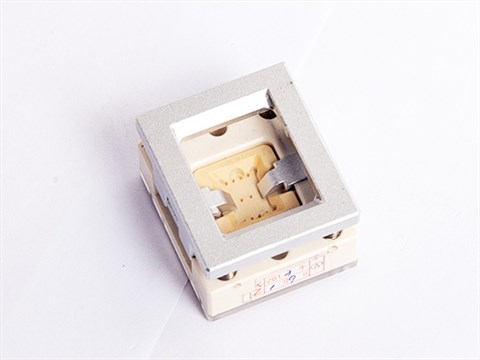

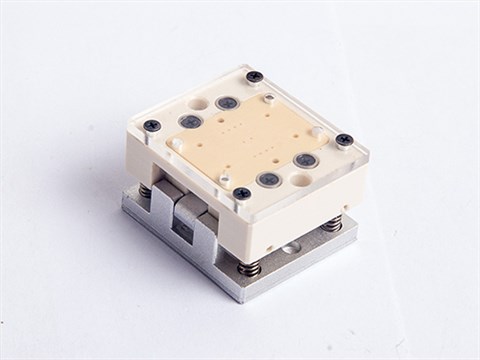

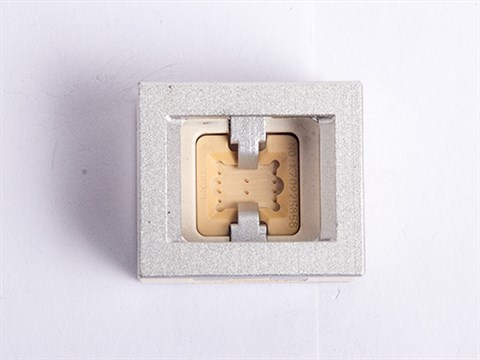

QFN8 burn in socket

QFN8 burn in socketQFN8 burn in socketQFN8 burn in socketQFN8 burn in socket

Product Introduction

QFN8 WSON8 Burn in Socket Open Top Pogo Pin IC Test Socket Pitch 0.5mm Chip Size 2x2 Flash Adapter Programming Socket.
1. Product Usage : burn in socket , test socket , burn in and test for chip?QFN8
2. Applicable Package :QFN8 , pin pitch 0.5mm

Product details

parameter

Type QFN8-0.5 (open top structure)
Pin pitch 0.5 mm
Pin Count 8
Applicable IC Body Dimension 2x2?mm

PRODUCT FEATURES

Small spacing
minimum pitch of 0.2mm
test accuracy
The test is accurate and the error rate is 0.001 %
High temperature
high temperature: 175℃, low temperature: -55℃
long service life
Life span more than 300,000 times, 2-3 times that of other similar brands
