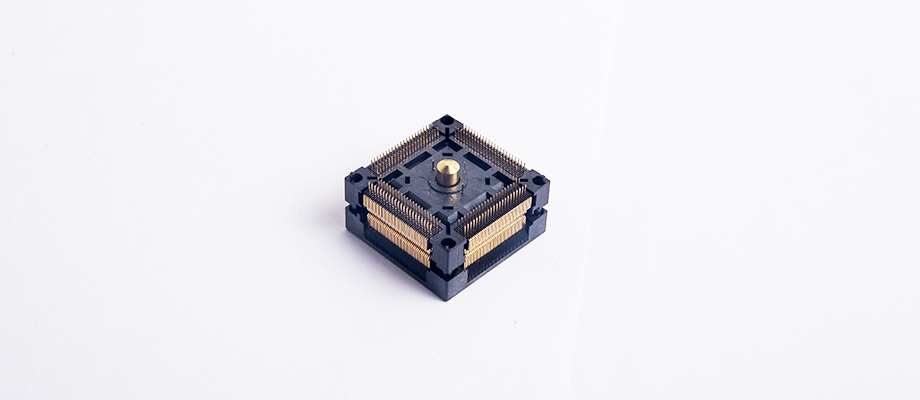

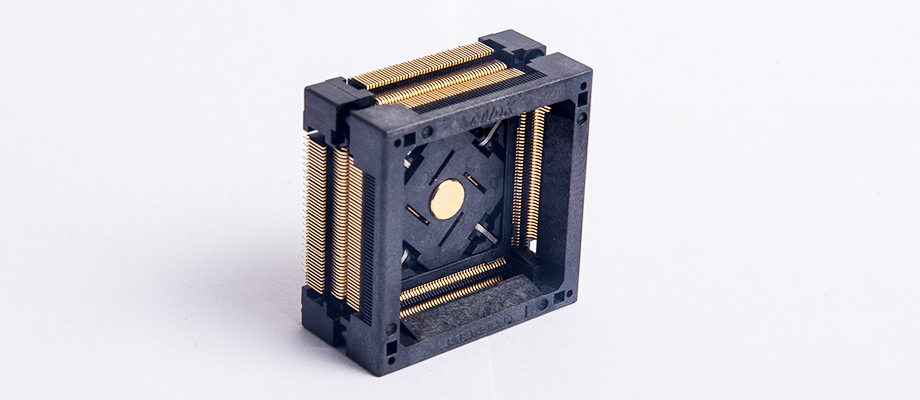

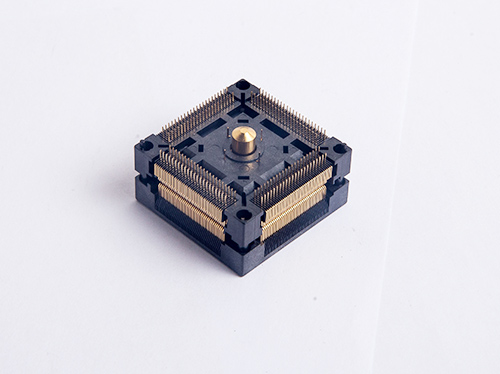

QFP176 burn in socket
QFP176 TQFP176 LQFP176 OTQ-176-0.5-06 Burn in Socket Pitch 0.5mm Open Top Programming Adapter Test Socket Adapter.
1. Product Usage : programmer socket , test socket , burn in and test for hipQFP176/TQFP176/LQFP176
2. Applicable Package : QFP64 , TQFP64 , LQFP64 ,pin pitch 0.5mm
1. Product Usage : programmer socket , test socket , burn in and test for hipQFP176/TQFP176/LQFP176
2. Applicable Package : QFP64 , TQFP64 , LQFP64 ,pin pitch 0.5mm

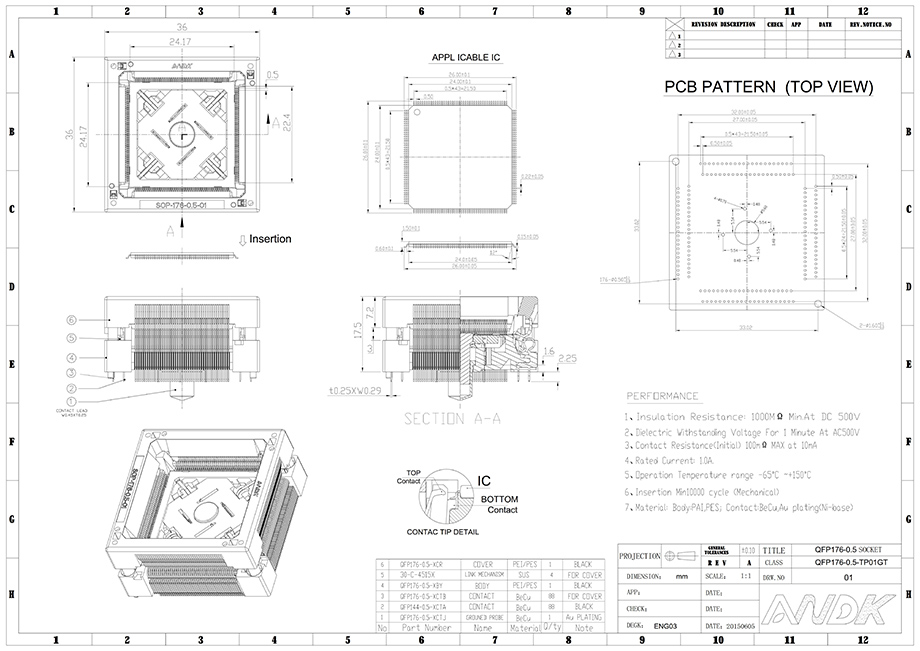

parameter
| Type | QFP 176-0.5-06 |
| Pin pitch | 0.5 mm |
| Pin Count | 176 |
| Applicable IC Body Dimension | 24*24 mm ( including pin dimension : 26*26 mm) |
PRODUCT FEATURES
-
-
Small spacing
minimum pitch of 0.2mm
-
-
test accuracy
The test is accurate and the error rate is 0.001 %
-
-
High temperature
high temperature: 175 ℃, low temperature: -55 ℃
-
-
long service life
Life span more than 300,000 times, 2-3 times that of other similar brands
Product image
